Whatsapp Link 📱

Simple node for connecting Node-Red to Whatsapp 📱

Currently in developing mode, Continous updated may encounter. 😅

Working on WhatsappLite (Lite version of whatsapp Web baised on web sockets.)

To Connect with Whatsapp

1. Deploy whatsapp admin node (along with whatsappLink node).
2. whatsappLink node will initilize, connect with whatsapp and generate a QR code below the Admin Node (in terminal also).
3. Scan the QR code with your Whatsapp Mobile App (Go to settings > Linked device > Scan & Connect).
4. Done - Whatsapp Connected.
5. Send "!nodered" to get a reply from Node-Red in Chats/Groups.

It will create a Whatsapp Web instance in your machine and store your session locally in Node-RED. All data are store in users <user>/.node-red/Whatsapp-Link folder. Near you Node-Red's settings.js file.

Nodes

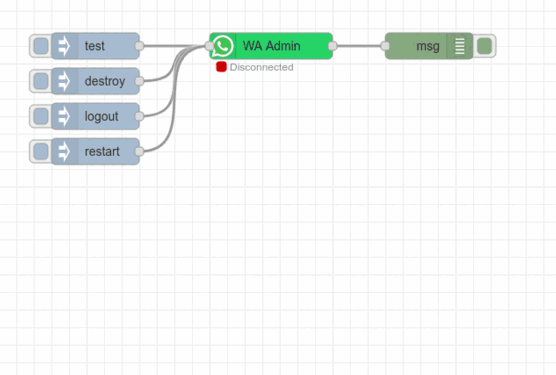

1. Whatsapp Admin : Node used for first time users to connect with whatsapp and other admin related tasks.
   Admin Node generate QR Code just below the node for easy connection with whatsapp.

   Inputs	Description
   test	Checks the current status of whatsapp and output the same in msg.payload
   destroy	Close the client and destroy the whatsapp connection.
   restart	Restart the whatsapp connection.
   logout	Simply log you out and close the session.

   ---

   Output	Description
   status	provide status on msg.payload for all and each input mentioned in above table.
   Connecting..	When whatsapp attempting to connect.
   QR Code (image)	when QR code is generated. This method can also be used to get QR Code (image) generated by whatsapp.
   Connected	When whatapp is sucessfully connected.
   Group Joined or Removed	msg.paylod : Group Name. msg.type : joined / Removed from group. msg.notification : Complete notification. msg.chat : Complete Group Details.

2. Chats In : Node to recive all messages send to connected number.

   • Simply deploy the node and wait for green (connected) status.
   • After succesfully connection, Node is able to recive all messages.

   Output	Description
   msg.paylod	Recived message
   msg.from	Sender Number
   msg.chatID	Chat ID of Group chat / Personal chat
   msg.message	Complete message object. Some extra details for advance users

3. Chats Out : As simple as mention on name, node will send msg.payload recived at input to the number mentioned in node.

   MultiMedia Message Out: Requirments-

   Input	Description
   msg.image	Base64 (encoded image)
   msg.payload	Image Caption
   msg.toNumber	Sender number (if number not provided in node)

   Don't forget to mention international dialing code befor your number. Number must be in format like +11 99999 99999 without any space.

   OR

   Leave the Number blank and provide the number along with paylod at msg.toNumber with international code. To send message on multiple contacts an Arrar of number can be passed on msg.toNumber like msg.toNumber = ["+1199999999", "+12990000099", "+1311111111"].

4. Group Message : Whatsapp Group Node to send message in a Group.

   The node will send recived msg.payload to a group chat.

5. Reply Node : In Beta mode.

Node will reply(the payload) on each message starting with string mentioned in instruction coloum or defaults !red.

Issues & Updates

Issues and Suggestions are welcome here.

• Ver-0.1.21 : Group Message Node added.
• Ver-0.1.23 : Nodes are formatted correctly and names are updated.
• Ver-0.1.28 : Now QR Codes are directlly avilable in run time on Whatsapp-Admin-Node.
• Ver-0.1.30 : Message can be send to an Array of contacts provided at msg.toNumber.
• Working on WhatsappLite.

Future Nodes

Currently working on more Whatsapp Node and will be avilable soon -

1. Chat Reply node. (working)
2. Whatsapp button message.
3. Whatsapp List message.
4. Instruction (smart) Reply Node.

Complete detail for Nodes will also be updated as soon as possible.

Please don`t try to spam with your personal Number, Suspicious activities might be tracked by whatsapp.

Thanks to bear with me
