# Whatsapp Link :iphone:
Simple node for connecting Node-Red to Whatsapp :iphone:
Send and Receive Whatsapp Image/Text.
Currently in developing mode, Continous updated may encounter. :sweat_smile:
## To Connect with Whatsapp
1. Deploy whatsapp admin node (along with whatsappLink node).
2. whatsappLink node will initilize, connect with whatsapp and generate a QR code below the Admin Node (in terminal also).
3. Scan the QR code with your Whatsapp Mobile App (Go to settings > Linked device > Scan & Connect).
4. Done - Whatsapp Connected.
5. Send "`!nodered`" to get a reply from Node-Red in Chats/Groups.

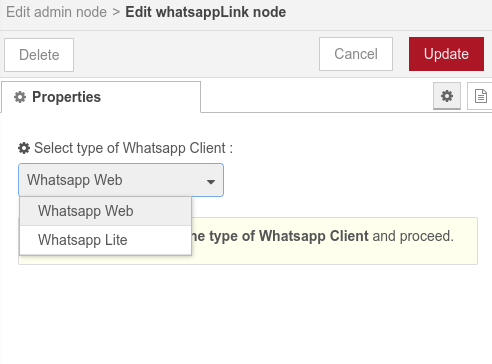

### if Whatsapp Web not working ?
Their is lite version also avilable in it. Totally different from Whatapp-Web,
Whatsapp-Lite (Beta Mode) works on Web-Sockets only, It might work for you also.
Simply chosse `Whatsapp Lite` in Whatsapp-Link configration node.
*It will create a Whatsapp Web instance in your machine and store your session locally in Node-RED. All data are store in users `/.node-red/Whatsapp-Link` folder. Near you Node-Red's settings.js file.*
## Nodes

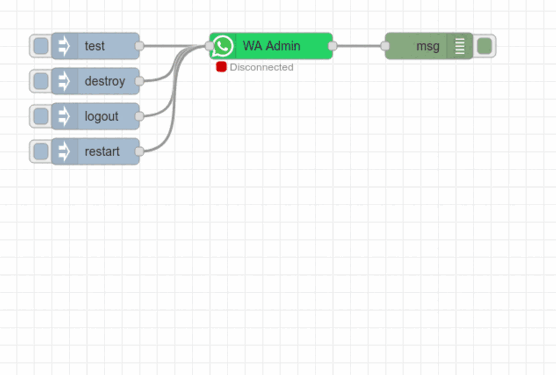

1. **Whatsapp Admin** : Node used for first time users to connect with whatsapp and other admin related tasks.
Admin Node generate QR Code just below the node for easy connection with whatsapp.
| Inputs | Description |
|--------|-------------- |
| test | Checks the current status of whatsapp and output the same in `msg.payload`|
| destroy| Close the client and destroy the whatsapp connection.|
| restart | Restart the whatsapp connection. |
| logout | Simply log you out and close the session. |
---
| Output | Description |
|--------| ------------|
|`status` | provide status on `msg.payload` for all and each input mentioned in above table. |
| Connecting..| When whatsapp attempting to connect.
| QR Code (image) | when QR code is generated. *This method can also be used to get QR Code (image) generated by whatsapp.*
| Connected | When whatapp is sucessfully connected.|
| Group Joined or Removed | `msg.paylod` : Group Name. `msg.type` : joined / Removed from group. `msg.notification` : Complete notification. `msg.chat` : Complete Group Details.
2. **Chats In** : Node to recive all messages send to connected number.
- Simply deploy the node and wait for green (connected) status.
- After succesfully connection, Node is able to recive all messages.
| Output | Description |
|--------|-------------|
| `msg.paylod` | Recived message |
| `msg.from` | Sender Number |
| `msg.chatID` | Chat ID of Group chat / Personal chat |
| `msg.message` | Complete message object.
*Some extra details for advance users* |
Their are many other events options avilable along with `message` event in Chats-In Node. For details refer documentation for Chats-In Node.
3. **Chats / Group Out** : As simple as mention on name, node will send `msg.payload` recived at input to the number mentioned in node.
`ImageMessage.json` example is avilable in examples to import.
MultiMedia Message: Requirments-
| Input | Description |
|--------|-------------|
| `msg.image` | Base64 (encoded image), [`image-tool`](https://flows.nodered.org/node/node-red-contrib-image-tools) node work fine for incoding base64|
| `msg.payload` | Image Caption |
| `msg.toNumber` | Reciver number (if number not provided in node) |
Don't forget to mention international dialing code befor your number.
Number must be in format like +11 99999 99999 without any space.
OR
Leave the Number blank and provide the number along with paylod at `msg.toNumber` with international code.
To send message on multiple contacts an Arrar of number can be passed on `msg.toNumber` like `msg.toNumber` = ["+1199999999", "+12990000099", "+1311111111"].
4. **Group Message** : Whatsapp Group Node to send message in a Group.
The node will send recived `msg.payload` to a group chat.
`A-reply-to-All.json` example is avilable in examples to import.
5. **Reply Node** : In Beta mode. (Chats-out Node can be used instead of reply node)
Node will reply(the `payload`) on each message starting with string mentioned in instruction coloum or defaults `!red`. Avoid using it please.
## Issues & Updates
Issues and Suggestions are welcome [here.](https://github.com/raweee/node-red-contrib-whatsapp-link/issues)
* `Ver-0.1.21` : Group Message Node added.
* `Ver-0.1.23` : Nodes are formatted correctly and names are updated.
* `Ver-0.1.28` : Now QR Codes are directlly avilable in run time on Whatsapp-Admin-Node.
* `Ver-0.1.30` : Message can be send to an Array of contacts provided at `msg.toNumber`.
* `Ver-0.1.32` : Socket based `Whatsapp Lite` config node added in beta mode. Image message sending support added in chats-out node.
* `Ver-0.1.33` : Button and list support added, Minnor bugs fixed.
* `Ver-0.1.34` : Multiple Events reading options are added in Chats-In Node.
* `Ver-0.1.36` : Check box added to show status as `Online/Offline` in Whatsapp-Link Node, to get push notifications. Ping-Interval added to keep whatsapp alive for long time. Multiple examples added.
* `Ver-0.1.37` : Changes for correction of send message with images and use Chromium profiles in Puppeteer.
* `Ver-0.1.39B` : Broken "Whatsapp-Web & Lite" fixed. Able to `Send/Receive` whatsapp `Image/Text` in both Whatsapp-Lite & Web. working on easy to use nodes.
## Future Nodes
Currently working on more Whatsapp Node and will be avilable soon -
1. Chat Reply node. (working)
2. Whatsapp button message.
3. Whatsapp List message.
2. Instruction (smart) Reply Node.
Complete detail for Nodes will also be updated as soon as possible.
>Please don`t try to spam with your personal Number, Suspicious activities might be tracked by whatsapp.
Thanks to bear with me
